CubicLabs has more experience providing precision vehicle network data conversion than any other manufacturer.

   Four 16-Bit Analog Output Channels

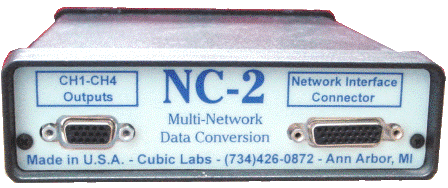

        Gain easy access to ANY vehicle bus data by plugging the NC2 into your vehicle’s OBD connector!  Just one standard J1962 cable will supply Engine RPM, Speed, Throttle, Temperature and thousands of additional vehicle parameters. Use the Free Microsoft Windows application software to configure the NC2 over its built-in RS-232 serial port for stand-alone  operation. Save your NC2 firmware and configuration settings in the NC2’s FLASH memory for unattended operation.  Scale and convert your automotive bus data for real time data streaming to any analog, pulse or digital data acquisition system with the NC2.

Quick and Easy Tachometer for NVH Equipment

The NC2 is the best way for you to get Engine Tachometer pulses for your existing data acquisition equipment.  The NC2 digital pulse outputs are perfect for Noise Vibration and Harshness (NVH) test labs who need to correlate measurements with vehicle RPM.  By using the NC2 with digital outputs, there is no need to wire discrete sensors into a vehicle to provide tachometer pulses.  Simply plug the NC2 into the vehicle OBD network port to reliably and accurately supply data to the tachometer input for audio data recorders and vibration data acquisition systems.

Automatic OBD Detect

The NC2 automatically determines vehicle network type, and automatically retrieve and process any network data, such as Vehicle Speed, RPM, or other legislated manufacturer network data. The NC2 also may be used to request,  monitor, and process any manufacturer’s proprietary network data.

Automatic PID Retrieval

The NC2 automatically detects and supports any OBD network type, including ISO-9141, Keyword 2000, OBD CAN, J1850 PWM and J1850 VPW.  The NC2 is the only vehicle network interface which can automatically retrieve any legislated PID data such as Vehicle Speed without having to reprogram the data logger hardware each time the product is used in a new or different vehicle network type.

Works in Any OBD-2 Vehicle

Other vehicle network interfaces work with only  specific manufacturers and vehicle models, or require       cumbersome reprogramming to support different vehicles. The NC2 easily works with any vehicle, regardless of make or model.

Set It and Forget It

Once you choose to request a specific data item, such as RPM or Vehicle Speed, for example, you never need to reprogram the NC2 again.  Simply plug the NC2 Network Converter into the On Board Diagnostic (OBD) connector of any vehicle – regardless of make and model – and instantly begin accessing your data without any additional device setup, programming, or driver intervention of any kind.
